KIOXIA CD9P-R 系列 (2.5 吋)

資料中心級 NVMe™ 讀取密集型 SSD

鎧俠 CD9P-R 系列為讀取密集型資料中心 NVMe™ 固態硬碟 (SSD)，適用於支援各種橫向擴充和雲端應用。CD9P-R 系列 SSD 採用 PCIe^® 5.0 和 NVMe™ 2.0 技術，提供高達 2,600K IOPS (隨機讀取) 和 450K IOPS (隨機寫入) 的卓越效能。

搭載鎧俠 BiCS FLASH™ 第 8 代 TLC 快閃記憶體，CD9P-R 2.5 吋外型規格 SSD 提供 1 DWPD (每日磁碟寫入量) 的耐用度以及高達 61.44 TB 的儲存容量，適用於超大規模資料中心應用。

CD9P-R 2.5 吋 SSD 中 1.92 TB 和 3.84 TB 容量使用 KIOXIA BiCS FLASH^TM 第 5 代 TLC 快閃記憶體

文件

Product Brief (PDF: 132KB)

產品特色

PCIe^® 5.0，符合 NVMe™ 2.0 規格
支援開放運算專案資料中心 NVMe™ SSD 規格 v2.5 (非全部要求)
外型規格：2.5 吋、厚度 15 mm
專有的鎧俠架構：控制器、韌體和 BiCS FLASH™ 3D TLC 第 8 代及第 5 代快閃記憶體

單埠設計，針對資料中心級工作負載最佳化
一致的效能和可靠性，適用於要求嚴苛的全天候作業環境
專為高密度儲存部署設計
斷電保護 (PLP) 及端對端資料保護
加密選項：SIE、SED^[1][2][3][4]

主要應用

超大規模運算
IoT 與大數據分析
線上交易處理 (OLTP)
(交易式和關聯式資料庫)
串流媒體及內容交付網路
虛擬化環境

應用

產品規格

* 表格可水平捲動。

SIE Model Number	KCD9XPUG61T4	KCD9XPUG30T7	KCD9XPUG15T3	KCD9XPUG7T68	KCD9XPUG3T84	KCD9XPUG1T92
SED Model Number	KCD9DPUG61T4	KCD9DPUG30T7	KCD9DPUG15T3	KCD9DPUG7T68	KCD9DPUG3T84	KCD9DPUG1T92
Capacity	61,440 GB	30,720 GB	15,360 GB	7,680 GB	3,840 GB	1,920 GB
Basic Specifications
Form Factor	2.5-inch, 15mm thickness
lnterface	PCIe^® 5.0, NVMe™ 2.0
Maximum Interface Speed	128 GT/s (PCIe^® Gen5 x4)
Flash Memory Type	BiCS FLASH™ TLC
Performance (Up to)
Sustained 128 KiB Sequential Read	13,500 MB/s		14,800 MB/s		14,500 MB/s
Sustained 128 KiB Sequential Write	7,000 MB/s					3,600 MB/s
Sustained 4 KiB Random Read	1,200K IOPS	2,600K IOPS				2,000K IOPS
Sustained 4 KiB Random Write	100K IOPS	300K IOPS	450K IOPS		320K IOPS	160K IOPS
Power Requirements
Supply Voltage	12 V ± 10 %, 3.3 V ± 15 %
Power Consumption (Active)	23 W typ.
Power Consumption (Ready)	5 W typ.
Reliability
MTTF	2,500,000 hours @ 0 ℃ to 50 ℃ 2,000,000 hours @ 0 ℃ to 55 ℃
Warranty	5 years
DWPD	1
Dimensions
Thickness	15.0 mm +0 / -0.5 mm
Width	69.85 mm ± 0.25 mm
Length	100.45 mm Max
Weight	130 g Max
Environmental
Temperature (Operating)	0 °C to 75 °C
Temperature (Non-operating)	-40 °C to 85 °C
Humidity (Operating)	5 % to 95 % R.H.
Vibration (Operating)	21.27 m/s² { 2.17 Grms } ( 5 Hz to 800 Hz )
Shock (Operating)	9.8 km/s² { 1,000 G } ( 0.5 ms )

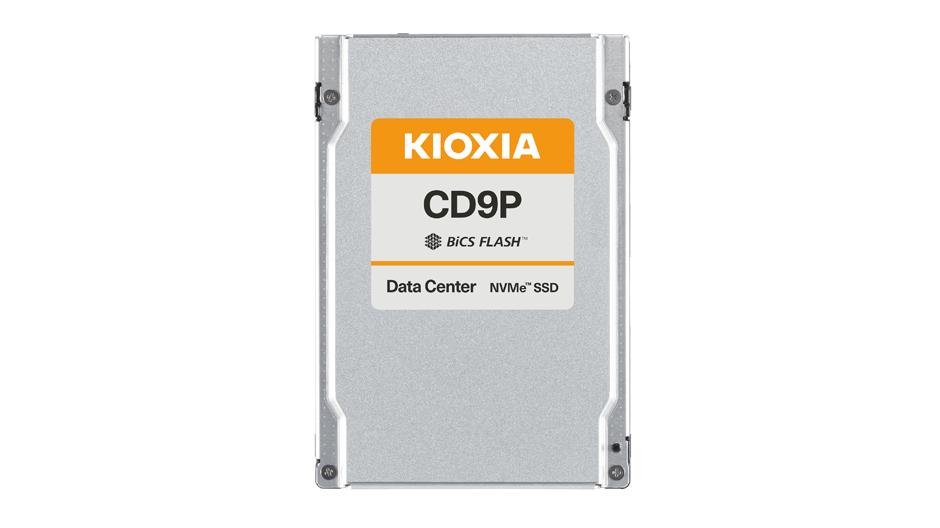

Product image may represent a design model.
Definition of capacity: Kioxia Corporation defines a megabyte (MB) as 1,000,000 bytes, a gigabyte (GB) as 1,000,000,000 bytes and a terabyte (TB) as 1,000,000,000,000 bytes. A computer operating system, however, reports storage capacity using powers of 2 for the definition of 1 GB = 2^30 = 1,073,741,824 bytes and 1TB = 2^40 bytes = 1,099,511,627,776 bytes and therefore shows less storage capacity. Available storage capacity (including examples of various media files) will vary based on file size, formatting, settings, software and operating system, and/or pre-installed software applications, or media content. Actual formatted capacity may vary.
GT/s: Giga Transfers per second.
A kibibyte (KiB) means 2^10, or 1,024 bytes.
MTTF (Mean Time to Failure) is not a guarantee or estimate of product life; it is a statistical value related to mean failure rates for a large number of products which may not accurately reflect actual operation. Actual operating life of the product may be different from the MTTF.
DWPD: Drive Writes Per Day. One full drive write per day means the drive can be written and re-written to full capacity once a day every day under the specified workload for the specified lifetime. Actual results may vary due to system configuration, usage and other factors.
Read and write speed may vary depending on various factors such as host devices, software (drivers, OS etc.), and read/write conditions.
IOPS: Input Output Per Second (or the number of I/O operations per second).
Temperature (operating): Specified by the composite temperature reported by SMART.
[1] Sanitize Instant Erase (SIE) and Self-Encrypting Drive (SED) security optional models are available.
[2] SIE optional model supports Cryptographic Erase, which is a standardized feature defined by the technical committees (SCSI) of INCITS (the InterNational Committee for Information Technology Standards).
[3] SED optional model supports TCG Opal and Ruby SSCs. It has a few unsupported features of TCG Opal SSC. For more details, please make inquiries through “Contact us”.
[4] Security optional models are not available in all countries due to export and local regulations.
