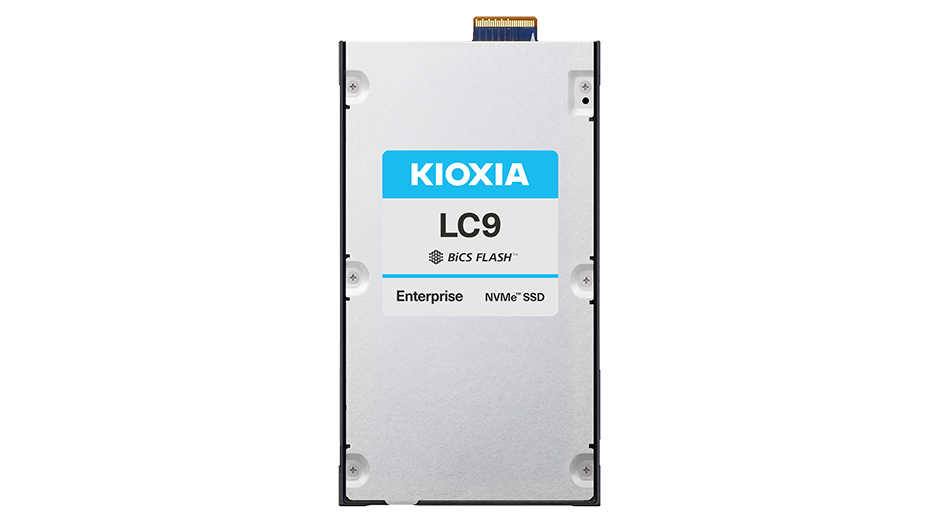

KIOXIA LC9 系列（E3.L）

企業級 NVMe™ 高容量 SSD

KIOXIA LC9 系列是一款高容量固態硬碟（SSD），能完美支援 AI 系統中的深度模擬訓練、精準推論及龐大的資料湖儲存需求。

KIOXIA LC9 系列（E3.L）採用鎧俠第 8 代 BiCS FLASH™ QLC 快閃記憶體，容量高達 245.76 TB，為該系列中容量最大的機種。透過大幅提高儲存密度，有效縮減實體占用空間，不僅實現了高效能的功耗與基礎設施空間管理，更能顯著降低總體擁有成本（TCO）。

LC9 系列 SSD 基於 PCIe^® 5.0 與 NVMe™ 2.0 技術打造，可提供極為穩定的讀取效能，循序讀取（sequential read）MB/s 速度高達 12,000 MB/s，隨機讀取（random read）1,000 KIOPS。

文件

Product Brief (PDF: 111KB)

產品特色

PCIe^® 5.0，符合 NVMe™ 2.0 規格
支援開放運算專案資料中心 NVMe™ SSD 規格 v2.5（非全部要求）
外型規格：E3.L、厚度 7.5 mm
BiCS FLASH™ 第 8 代 QLC 快閃記憶體
專有的鎧俠架構：控制器、韌體和 BiCS FLASH™ 技術

雙埠設計，適合高可用性應用
斷電保護（PLP）及端對端資料保護
適用於全天候運作的企業工作負載量
加密選項：SIE, SED, FIPS SED^{[1][2][3][4][5]}
支援 SED（選配）

主要應用

資料湖
AI 系統
機器學習應用
橫向擴充儲存

應用

產品規格

* 表格可水平捲動。

SIE Model Number	RLC9CZV245T
SED Model Number	RLC9EZV245T
FIPS SED Model Number	RLC9GZV245T
Capacity	245.76 TB
IU Size	16 KiB
Basic Specifications
Form Factor	E3.L
lnterface	PCIe^® 5.0, NVMe™ 2.0
Maximum Interface Speed	128 GT/s (PCIe^® Gen5 single x4, dual x2)
Flash Memory Type	BiCS FLASH™ QLC
Performance (Up to)
Sustained 128 KiB Sequential Read	12,000 MB/s
Sustained 128 KiB Sequential Write	3,500 MB/s
Sustained 4 KiB Random Read	1,000 KIOPS
Sustained Random Write	45 KIOPS @ 16 KiB
Power Requirements
Supply Voltage	12 V ± 10 %, 3.3 V ± 15 %
Power Consumption (Active)	30 W typ.
Power Consumption (Ready)	5 W typ.
Reliability
MTTF	2,500,000 hours @ 0 ℃ to 50 ℃ 2,000,000 hours @ 0 ℃ to 55 ℃
Warranty	5 years
DWPD	0.075 @ 4 KiB 0.3 @ 16 KiB
Dimensions
Thickness	7.5 mm +0.2 / -0.5 mm
Width	76 mm ± 0.25 mm
Length	142.2 ｍｍ ± 0.4 mm
Weight	160 g Max
Environmental
Temperature (Operating)	0 °C to 75 °C
Temperature (Non-operating)	-40 °C to 85 °C
Humidity (Operating)	5 % to 95 % R.H.
Vibration (Operating)	21.27 m/s² { 2.17 Grms } ( 5 Hz to 800 Hz )
Shock (Operating)	9.8 km/s² { 1,000 G } ( 0.5 ms )

Product image may represent a design model.
Definition of capacity: Kioxia Corporation defines a megabyte (MB) as 1,000,000 bytes, a gigabyte (GB) as 1,000,000,000 bytes and a terabyte (TB) as 1,000,000,000,000 bytes. A computer operating system, however, reports storage capacity using powers of 2 for the definition of 1 GB = 2^30 = 1,073,741,824 bytes and 1TB = 2^40 bytes = 1,099,511,627,776 bytes and therefore shows less storage capacity. Available storage capacity (including examples of various media files) will vary based on file size, formatting, settings, software and operating system, and/or pre-installed software applications, or media content. Actual formatted capacity may vary.
IU Size: Indirection Unit Size. It is the minimum unit size of the FTL mapping table to manage user data on NAND flash memory.
GT/s: Giga Transfers per second.
A kibibyte (KiB) means 2^10, or 1,024 bytes.
MTTF (Mean Time to Failure) is not a guarantee or estimate of product life; it is a statistical value related to mean failure rates for a large number of products which may not accurately reflect actual operation. Actual operating life of the product may be different from the MTTF.
DWPD: Drive Writes Per Day. One full drive write per day means the drive can be written and re-written to full capacity once a day every day under the specified workload for the specified lifetime. Actual results may vary due to system configuration, usage and other factors.
Read and write speed may vary depending on various factors such as host devices, software (drivers, OS etc.), and read/write conditions.
Random write performance is based on the workload of random writes with the defined IU size for each model.
IOPS: Input Output Per Second (or the number of I/O operations per second).
Temperature (operating): Specified by the composite temperature reported by SMART.
[1] Sanitize Instant Erase (SIE), Self-Encrypting Drive (SED) and FIPS (Federal Information Processing Standards) SED security optional models are available.
[2] SIE optional model supports Cryptographic Erase, which is a standardized feature defined by the technical committees (SCSI) of INCITS (the InterNational Committee for Information Technology Standards).
[3] SED optional model supports TCG Opal and Ruby SSCs. It has a few unsupported features of TCG Opal SSC. For more details, please make inquiries through “Contact us”.
[4] FIPS SED optional model utilizes a security module designed to comply with FIPS 140-3, which defines security requirements for cryptographic module by NIST (National Institute of Standards and Technology). For the latest validation status, please make inquiries through “Contact us”.
[5] Security optional models are not available in all countries due to export and local regulations.
All information provided here is subject to change without prior notice.
