鎧俠 BG6 系列 (M.2)
-
/
-
客戶級 NVMe SSD
鎧俠 BG7 系列是一款外型規格精巧的 NVMe™ 固態硬碟，容量高達 2,048 GB，採用 PCIe® 4.0, NVMe™ 2.0d 規格相容介面及鎧俠 BiCS FLASH™ 第 8 代 TLC 快閃記憶體*。BG7 系列固態硬碟具備更高的頻寬，以及更優異的快閃記憶體管理和主機記憶體緩衝 (HMB) 技術，提供以小型外型規格固態硬碟而言特別高的讀取效能，高達 7,000 MB/s (循序讀取) 和 1000K IOPS (隨機讀取)。
鎧俠 BG7 系列固態硬碟提供 256 GB、512 GB、1,024 GB 和 2,048 GB 容量，採用 M.2 Type 2230 和 Type 2280 模組外型規格，適用於輕薄系統設計，例如超薄型筆記型電腦、嵌入式裝置及資料中心的伺服器開機。BG7 系列提供自我加密硬碟 (SED) 型號選項，支援 TCG Opal 2.01 版。
- 針對 256 GB 的 BG7 SSD，採用鎧俠第 6 代 BiCS FLASH™ TLC 快閃記憶體技術。
文件
產品特色
- 鎧俠 BiCS FLASH™ 第 8 代 TLC 快閃記憶體 (256 GB 為鎧俠 BiCS FLASH™ 第 6 代 TLC 快閃記憶體)
- PCIe® 4.0，符合 NVMe™ 2.0d 規格
- 容量高達 2,048 GB
- 採單面配置的 M.2 Type 2230 和 Type 2280 精巧外型規格
- TCG OPAL 2.01 SED 選項
主要應用
- 輕薄型筆記型電腦
- AI 筆記型電腦
- 二合一筆記型電腦
產品規格
M.2 Type 2280-S2/ -S3 單面配置
* 表格可水平捲動。
| Base Model Number | KBG70ZNS2T04 | KBG70ZNS1T02 | KBG70ZNS512G | KBG70ZNS256G |
|---|---|---|---|---|
| SED Model Number | KBG7BZNS2T04 | KBG7BZNS1T02 | KBG7BZNS512G | KBG7BZNS256G |
| Capacity | 2,048 GB | 1,024 GB | 512 GB | 256 GB |
| Basic Specifications | ||||
| Form Factor | M.2 2230-S3 Single-sided | M.2 2230-S2 Single-sided | ||
| lnterface | PCIe® 4.0, NVMe™ 2.0d | |||
| Maximum Interface Speed | 64 GT/s (PCIe® Gen4 x4) | |||
| Flash Memory Type | BiCS FLASH™ TLC | |||
| Performance (Up to) | ||||
| Sequential Read | 7,000 MB/s | 6,400 MB/s | ||
| Sequential Write | 6,000 MB/s | 5,000 MB/s | 4,000 MB/s | |
| Random Read | 1,000 KIOPS | 850 KIOPS | 550 KIOPS | 500 KIOPS |
| Random Write | 1,000 KIOPS | 920 KIOPS | 850 KIOPS | |
| Power Requirements | ||||
| Supply Voltage | 3.3 V ± 5 % | |||
| Power Consumption (Active) | 4.5 W typ. | |||
| Power Consumption (L1.2 mode) | 3.0 mW typ. | |||
| Reliability | ||||
| MTTF | 2,000,000 hours | |||
| TBW | 1,200 | 600 | 300 | 150 |
| Dimensions | ||||
| Thickness | 2.38 mm Max | 2.23 mm Max | ||
| Width | 22 ｍｍ ± 0.15 mm | |||
| Length | 30 ｍｍ ± 0.15 mm | |||
| Weight | 3.2 g Max | |||
| Environmental | ||||
| Temperature (Operating) | 0 ℃ to 85 ℃ | |||
| Temperature (Non-operating) | -40 ℃ to 85 ℃ | |||
| Humidity (Operating) | 0 % to 90 % R.H. | |||
| Vibration (Operating) | 196 m/s2 { 20 Grms } ( 20 to 2,000 Hz ) | |||
| Shock (Operating) | 14.7 km/s2 { 1,500 G } ( 0.5 ms ) | |||
M.2 Type 2280-S2 單面配置
* 表格可水平捲動。
| Base Model Number | KBG70ZNT2T04 | KBG70ZNT1T02 | KBG70ZNT512G | KBG70ZNT256G |
|---|---|---|---|---|
| SED Model Number | KBG7BZNT2T04 | KBG7BZNT1T02 | KBG7BZNT512G | KBG7BZNT256G |
| Capacity | 2,048 GB | 1,024 GB | 512 GB | 256 GB |
| Basic Specifications | ||||
| Form Factor | M.2 2242-S3 Single-sided | M.2 2242-S2 Single-sided | ||
| lnterface | PCIe® 4.0, NVMe™ 2.0d | |||
| Maximum Interface Speed | 64 GT/s (PCIe® Gen4 x4) | |||
| Flash Memory Type | BiCS FLASH™ TLC | |||
| Performance (Up to) | ||||
| Sequential Read | 7,000 MB/s | 6,400 MB/s | ||
| Sequential Write | 6,000 MB/s | 5,000 MB/s | 4,000 MB/s | |
| Random Read | 1,000 KIOPS | 850 KIOPS | 550 KIOPS | 500 KIOPS |
| Random Write | 1,000 KIOPS | 920 KIOPS | 850 KIOPS | |
| Power Requirements | ||||
| Supply Voltage | 3.3 V ± 5 % | |||
| Power Consumption (Active) | 4.5 W typ. | |||
| Power Consumption (L1.2 mode) | 3.0 mW typ. | |||
| Reliability | ||||
| MTTF | 2,000,000 hours | |||
| TBW | 1,200 | 600 | 300 | 150 |
| Dimensions | ||||
| Thickness | 2.38 mm Max | 2.23 mm Max | ||
| Width | 22 ｍｍ ± 0.15 mm | |||
| Length | 42 ｍｍ ± 0.15 mm | |||
| Weight | 3.8 g Max | |||
| Environmental | ||||
| Temperature (Operating) | 0 ℃ to 85 ℃ | |||
| Temperature (Non-operating) | -40 ℃ to 85 ℃ | |||
| Humidity (Operating) | 0 % to 90 % R.H. | |||
| Vibration (Operating) | 196 m/s2 { 20 Grms } ( 20 to 2,000 Hz ) | |||
| Shock (Operating) | 14.7 km/s2 { 1,500 G } ( 0.5 ms ) | |||

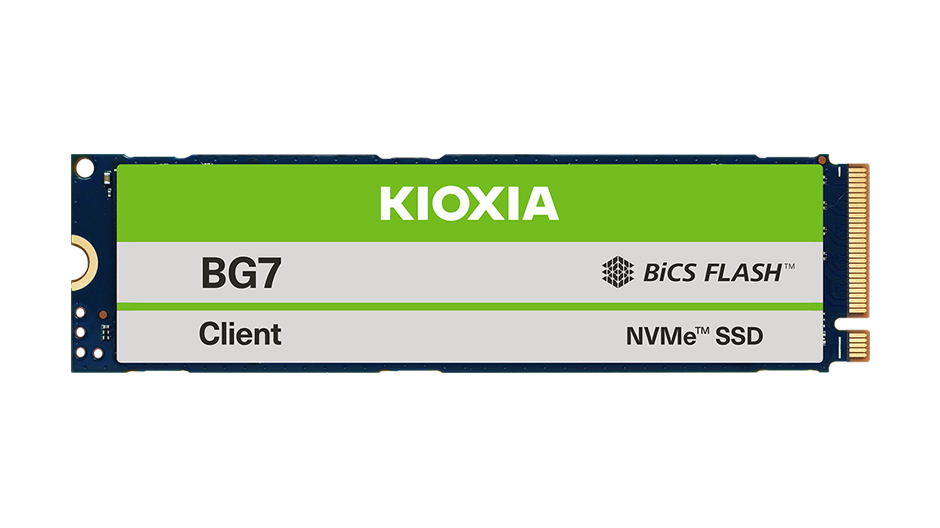

M.2 Type 2280-S2 單面配置
* 表格可水平捲動。
| Base Model Number | KBG70ZNV2T04 | KBG70ZNV1T02 | KBG70ZNV512G | KBG70ZNV256G |
|---|---|---|---|---|
| SED Model Number | KBG7BZNV2T04 | KBG7BZNV1T02 | KBG7BZNV512G | KBG7BZNV256G |
| Capacity | 2,048 GB | 1,024 GB | 512 GB | 256 GB |
| Basic Specifications | ||||
| Form Factor | M.2 2280-S3 Single-sided | M.2 2280-S2 Single-sided | ||
| lnterface | PCIe® 4.0, NVMe™ 2.0d | |||
| Maximum Interface Speed | 64 GT/s (PCIe® Gen4 x4) | |||
| Flash Memory Type | BiCS FLASH™ TLC | |||
| Performance (Up to) | ||||
| Sequential Read | 7,000 MB/s | 6,400 MB/s | ||
| Sequential Write | 6,000 MB/s | 5,000 MB/s | 4,000 MB/s | |
| Random Read | 1,000 KIOPS | 850 KIOPS | 550 KIOPS | 500 KIOPS |
| Random Write | 1,000 KIOPS | 920 KIOPS | 850 KIOPS | |
| Power Requirements | ||||
| Supply Voltage | 3.3 V ± 5 % | |||
| Power Consumption (Active) | 4.5 W typ. | |||
| Power Consumption (L1.2 mode) | 3.0 mW typ. | |||
| Reliability | ||||
| MTTF | 2,000,000 hours | |||
| TBW | 1,200 | 600 | 300 | 150 |
| Dimensions | ||||
| Thickness | 2.38 mm Max | 2.23 mm Max | ||
| Width | 22 ｍｍ ± 0.15 mm | |||
| Length | 80 ｍｍ ± 0.15 mm | |||
| Weight | 6.3 g Max | |||
| Environmental | ||||
| Temperature (Operating) | 0 ℃ to 85 ℃ | |||
| Temperature (Non-operating) | -40 ℃ to 85 ℃ | |||
| Humidity (Operating) | 0 % to 90 % R.H. | |||
| Vibration (Operating) | 196 m/s2 { 20 Grms } ( 20 to 2,000 Hz ) | |||
| Shock (Operating) | 14.7 km/s2 { 1,500 G } ( 0.5 ms ) | |||
- Product image may represent a design model.
- Availability of the SED model line-up may vary by region.
- Definition of capacity: KIOXIA Corporation defines a megabyte (MB) as 1,000,000 bytes, a gigabyte (GB) as 1,000,000,000 bytes and a terabyte (TB) as 1,000,000,000,000 bytes. A computer operating system, however, reports storage capacity using powers of 2 for the definition of 1 GB = 2^30 = 1,073,741,824 bytes and therefore shows less storage capacity. Available storage capacity (including examples of various media files) will vary based on file size, formatting, settings, software and operating system, such as Microsoft Operating System and/or pre-installed software applications, or media content. Actual formatted capacity may vary.
- IOPS: Input Output Per Second (or the number of I/O operations per second).
- TBW: Terabytes Written. The number of terabytes that may be written to the SSD for the specified lifetime.
- Read and write speed, tested on the state of "Host Memory Buffer (HMB) = On", may vary depending on the host device, read and write conditions, and file size.
- Read and write speed may vary depending on various factors such as host devices, software (drivers, OS etc.), and read/write conditions.
- MTTF (Mean Time to Failure) is not a guarantee or estimate of product life; it is a statistical value related to mean failure rates for a large number of products which may not accurately reflect actual operation. Actual operating life of the product may be different from the MTTF.
- PCIe is a registered trademark of PCI-SIG.
- NVMe is a registered or unregistered mark of NVM Express, Inc. in the United States and other countries.
- Other company names, product names, and service names may be trademarks of third-party companies.
- All information provided here is subject to change without prior notice.
